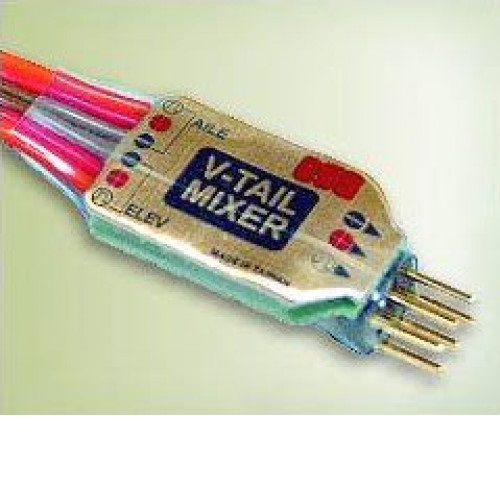

GWS V-Tail Mixer 11 (200step)

Description

This device allows mixing any channel to other channels and making your aircraft easier to fly.
It is necessary for you to fly the Delta Wing or V-Tail airplane if the transmitter has no mixing control function.

Operating voltage : 4.8V~6V (typical 4.8V)
Resolution : 200 steps
Working Temperature : -5°C~50°C
Weight : 5 g
Dimension : 22×13 mm  (0.866×0.512 in)
Mixing rate: 1 : 1

Directions;
Plug the AILERON and ELEV connector into the receiver aileron and elevator channels respectively as the wiring diagram shown.
Connect the AILERON and ELEV control servos to SERVO 1 & SERVO 2 of the V-tail mixer in accordance with the wiring diagram.
